TSB 13-12-13 INTELLIGENT ACCESS SMART UNLOCK INOPERATIVE

[Bill-N]

TSB 13-12-13

INTELLIGENT ACCESS SMART UNLOCK INOPERATIVE



Publication Date: November 28, 2013



FORD: 2013 C-MAX

2013-2014 Focus FORD: 2013-2014 Escape ISSUE:

Some 2013 C-MAX, 2013-2014 Escape and Focus vehicles equipped with Passive Entry-Passive Start (PEPS) and Intelligent Access (IA) may exhibit a customer concern of intermittent IA Smart Unlock function at the left or right front door is inoperative. This may be due to a salt, water, dirt film which has developed on internal components of the exterior front door handle.

ACTION:

Follow the Service Procedure Steps to correct the condition.

SERVICE PROCEDURE

1. Do the power door locks function normally when using the remote control?
   1. Yes - proceed to Step 2.
   2. No - this article does not apply. Refer to Workshop Manual (WSM), Section 501-14 for normal diagnosis.

2. Does the IA Smart unlock the doors?
   1. Yes - this article does not apply. Refer to Workshop Manual (WSM), Section 501-14 for normal diagnosis
   2. No - proceed to Step 3.

3. Remove the affected exterior front door handle. Refer to WSM, Section 501-14.

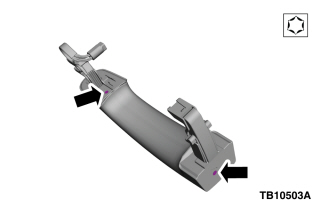

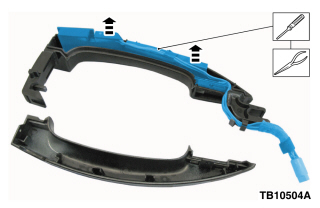

4. Using a Torx T6 screwdriver, carefully remove the two (2) screws, and remove the front door antenna, and door locking sensor assembly. (Figures 1 and 2)



   Figure 1 - 13-12-13







   Figure 2 - 13-12-13



5. Clean all parts using clear water, except the electrical connector, and dry using compressed air ensuring all moisture has been removed.

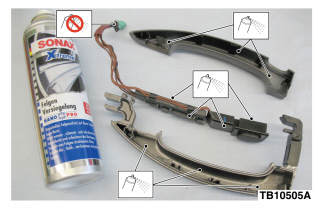

6. Apply SONAX® Polymer Net Shield or equivalent to all inner surfaces of the exterior front door handle, all outer surfaces of the front door antenna and door locking sensor. (Figure 3)



   Figure 3 - 13-12-13

   1. Do not apply any of the product to the electrical connector.

7. Allow the spray to dry for five (5) minutes.

8. To install, reverse the removal procedure Steps 3 and 4.



Obtain Part Locally Part Number Part Description 223 100 Sonax® Polymer Net Shield



[fbov]

Looks like they're suggesting what appears to be an oxidizing paint sealant, per Amazon: "as soon as the contents are exposed to oxygen, the hybrid polymers immediately begin to cross-link and harden"

http://www.amazon.com/Sonax-223100-Black-Polymer-Shield/dp/B00BDO48XM



As such, if there's an issue with moisture infiltration into the sensor assembly, this should help. That would correlate with my experience that it's not cold, per se, that result in the IA failure to unlock (mine malfunctions by repeatedly locking the doors when activated).



Have fun,

Frank

[Bill-N]

TSB 14-0078

INTELLIGENT ACCESS SMART UNLOCK INOPERATIVE - BUILT ON OR BEFORE 11/27/2013

Publication Date: April 23, 2014



FORD: 2012-2014 Focus

2013-2014 C-MAX, Escape

This article supersedes TSB 13-12-13 to add a production fix date and update the vehicle model years.

ISSUE:

Some 2012-2014 Focus, 2013-2014 C-Max and Escape vehicles equipped with Passive Entry-Passive Start (PEPS) and Intelligent Access (IA), and with a built on or before 11/27/2013 may exhibit a customer concern of intermittent IA Smart Unlock function at the left or right front door is inoperative. This may be due to a salt, water, dirt film which has developed on internal components of the exterior front door handle.

ACTION:

Follow the Service Procedure Steps to correct the condition.

SERVICE PROCEDURE

1. Do the power door locks function normally when using the remote control?
   1. Yes - proceed to Step 2.
   2. No - this article does not apply. Refer to Workshop Manual (WSM), Section 501-14 for normal diagnosis.

2. Does the IA Smart unlock the doors?
   1. Yes - this article does not apply. Refer to Workshop Manual (WSM), Section 501-14 for normal diagnosis.
   2. No - proceed to Step 3.

3. Remove the affected exterior front door handle. Refer to WSM, Section 501-14.

4. Using a Torx T6 screwdriver, carefully remove the two (2) screws, and remove the front door antenna, and door locking sensor assembly. (Figures 1 and 2)



   Figure 1 - 14-0078







   Figure 2 - 14-0078



5. Clean all parts using clear water, except the electrical connector, and dry using compressed air ensuring all moisture has been removed.

6. Apply SONAX® Polymer Net Shield or equivalent to all inner surfaces of the exterior front door handle, all outer surfaces of the front door antenna and door locking sensor. (Figure 3)



   Figure 3 - 14-0078

   1. Do not apply any of the product to the electrical connector.

7. Allow the spray to dry for five (5) minutes.

8. To install, reverse the removal procedure Steps 3 and 4.



Obtain Part Locally Part Number Part Description 223 100 Sonax® Polymer Net Shield



PART NUMBER PART NAME W717070 S450 Screw



OPERATION DESCRIPTION TIME 140078A 2013-2014 C-MAX, 2013-2014 Escape, 2012-2014 Focus: Apply Sealer To All Inner Surfaces Following Service Procedure One (1) Front Door (Do Not Use With Any Other Labor Operations) 0.5 Hr. 140078B 2013-2014 C-MAX, 2013-2014 Escape, 2012-2014 Focus: Apply Sealer To All Inner Surfaces Following Service Procedure Both (2) Front Door (Do Not Use With Any Other Labor Operations) 0.7 Hr.



WARRANTY STATUS

Eligible Under Provisions Of New Vehicle Limited Warranty Coverage.

Warranty/ESP coverage limits/policies/prior approvals are not altered by a TSB. Warranty/ESP coverage limits are determined by the identified causal part and verified using the OASIS part coverage tool.
